160kVA CNC 3 Axis Control Sink Seam Welding Machine and CE/CCC/ISO Certified Stainless Steel CNC Sink Polishing Machine

160kVA CNC sink welding machine

3 axis stainless steel sink welder

CE certified CNC sink polishing machine

Luogo di origine:

CE/CCC/ISO

Marca:

HWASHI

Certificazione:

CE/CCC/ISO

Contattici

Richieda una citazione

Dettagli del prodotto

Applicazione:

Saldatura per il lavandino della cucina

Capacità nominale:

160KVA

Tempo di formazione:

1min

Peso lordo singolo:

65.000kg

Potenza in ingresso:

380V10% 50Hz monofase

Utilizzo:

Saldatura a lavello

Consumo di acqua di raffreddamento:

1000 l/ora

Standard:

CE/CCC/ISO

Termini di trasporto & di pagamento

Quantità di ordine minimo

1 insieme

Prezzo

Negoziabile

Imballaggi particolari

pacchetto di legno del mare

Tempi di consegna

7-30 giorni lavorativi dopo aver ricevuto il pagamento

Termini di pagamento

L/C, T/T

Capacità di alimentazione

50 set al mese

Prodotti correlati

Video

500kg Stainless Steel Sink Welding Machine with 80KVA Power and Water Cooling for Industrial Kitchen Sink Welding

Ottenga il migliore prezzo

Video

Stainless Steel Sink Welding Machine Providing Automated Welding Solutions to Enhance and Strength of Kitchen Utensils

Ottenga il migliore prezzo

Semi Automatic Sink Welder Stainless Steel Welding Machine Suitable for Industrial Applications and Durable Performance

Ottenga il migliore prezzo

Video

160kVA CNC 3 Axis Control Sink Seam Welding Machine and CE/CCC/ISO Certified Stainless Steel CNC Sink Polishing Machine

Ottenga il migliore prezzo

Contattici

+8613380655800

marketing@hwashi.com

Contatto ora

Descrizione di prodotto

Hwashi Inox SS304 Kitchen Double Sink Seam Welding Machine and Stainless Steel CNC Sink Polishing Machine Grinder

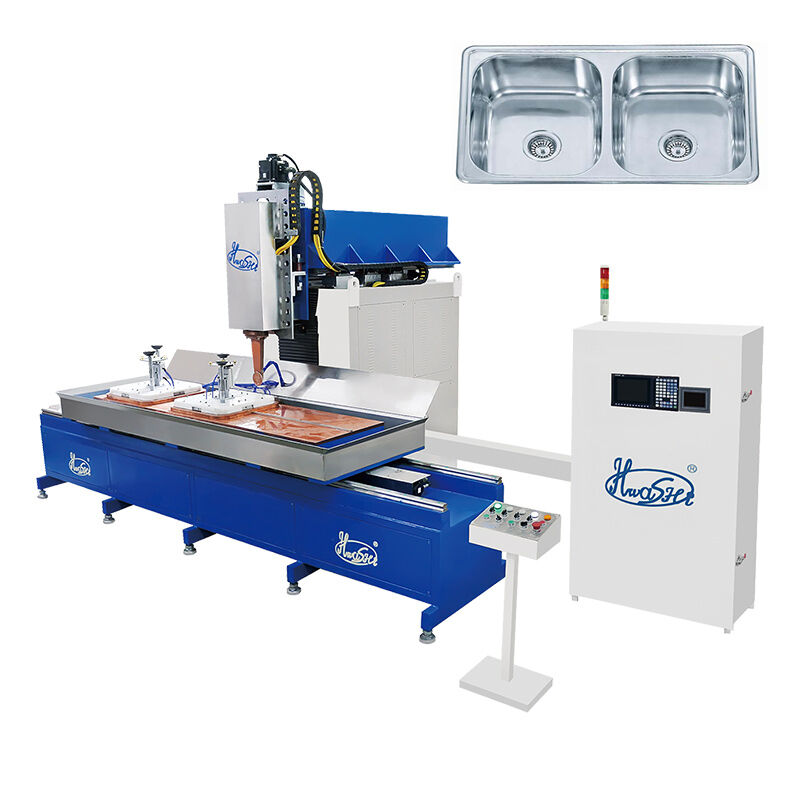

CNC Sink Seam Welding Machine

The CNC 3-Axis Control Stainless Steel Kitchen Sink Seam Welding Machine utilizes roller electrodes instead of traditional cylindrical spot welding electrodes. This advanced method produces sealed welds with overlapping molten cores as the workpiece moves between the rollers, ensuring strong, consistent welds.

This system features a medium frequency inverter welding power source and large flat platform for precise positioning. Servo motors drive the X-axis (locating mold) and Y-axis (welding electrode) according to pre-programmed PLC data. The welding electrode can rotate 360° under servo motor control, making it suitable for welding products at various angles.

Medium frequency inverter welding power source
Large flat positioning platform
Servo motor-driven X and Y axis operation
360° welding electrode rotation capability
Suitable for sinks up to 1600x700x300mm (customizable)

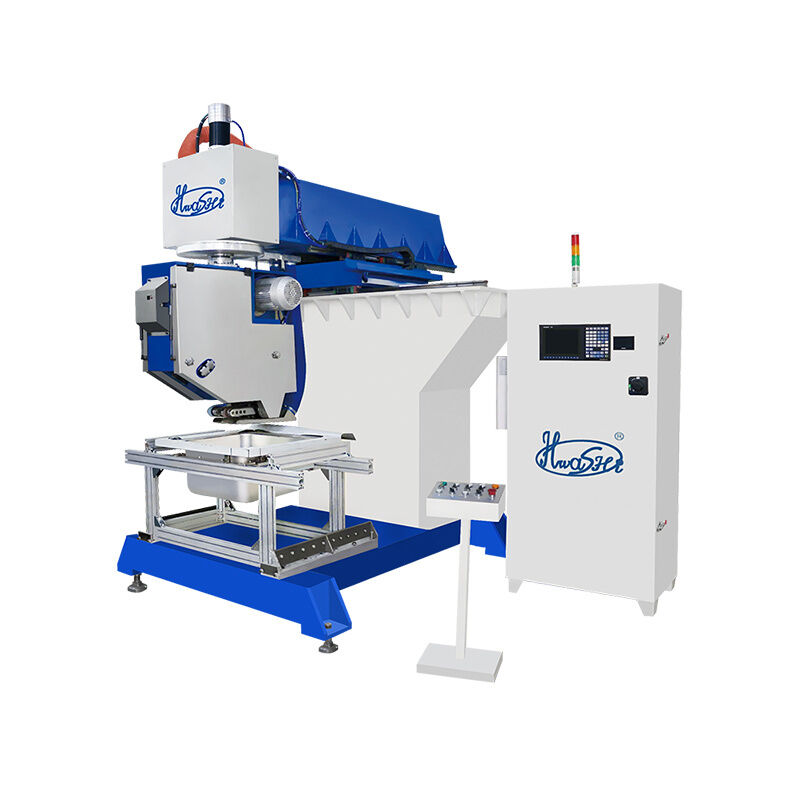

CNC Sink Edge Grinding and Polishing Machine

This specially designed machine grinds and polishes seams after welding operations. Typically purchased together with the welding machine, it completes the kitchen sink production process. The CNC sink grinding machine operates on an abrasive belt polishing principle, with the belt driven by an electric motor to polish welded sink edges.

The polishing process involves two stages: first, a coarse abrasive belt removes redundant cutting edges and projection welding spots; second, a fine abrasive belt performs the final polishing treatment. This two-stage process ensures high-quality surface finishing that meets sink manufacturing requirements.

Technical Specifications

CNC Sink Seam Welding Machine - Model: WL-AMF-160K
Input Power (V/φ)	380V 3φ
Rated Power (KVA)	160/250KVA (as per material thickness)
Applicable Material	Stainless Steel 304/201
Material Thickness	0.8~1.5mm (customized)
Effective Welding Length	1600-3000mm (customized)
Effective Welding Width	600-800mm (customized)
Sink Bowl Shape	Square/Rectangular/Round
Welding Efficiency	Approximately 40-60 seconds per bowl (size dependent)

CNC Sink Edge Grinding and Polishing Machine
Maximum Moving Speed	500mm/sec
Belt Rotation Speed	1200R/min
Minimum Radius	R40
Rated Air Pressure	0.6MPa
Grinding Efficiency	Approximately 60-80 seconds per bowl (size dependent)
