Name: Automatic Wire Mesh Welding Machine with 1 Year Warranty Double-Layer Feeder and Automatic Wire Filling System
Brand: Guangdong Hwashi Technology inc.
SKU: WL-CD-50K
Price: 225,000.00 USD
Availability: InStock

Casa > prodotti > Macchine di saldatura automatiche per scaffali di filo >

Automatic Wire Mesh Welding Machine with 1 Year Warranty Double-Layer Feeder and Automatic Wire Filling System

Automatic wire mesh welding machine with warranty

Double-layer feeder welding machine

Automatic wire filling welding system

Luogo di origine:

Cina

Marca:

HWASHI

Certificazione:

CE/CCC/ISO

Numero di modello:

WL-CD-50K

Contattici

Richieda una citazione

Dettagli del prodotto

Nome del prodotto:

Hwashi Macchina di saldatura di noccioline per serbatoi di stoccaggio del gas per automobili

Garanzia:

12 mesi

Condizione:

NUOVO

Durata di servizio:

8-10 anni

Forza dell'elettrodo:

1500 kg

Strato dell'elettrodo:

100 mm

Uscita Calore:

10000

Termini di trasporto & di pagamento

Quantità di ordine minimo

1 set

Prezzo

Negoziabile

Imballaggi particolari

pacchetto di legno degno di mare

Tempi di consegna

7-30 giorni lavorativi dopo aver ricevuto il pagamento

Termini di pagamento

L/C,T/T

Capacità di alimentazione

50 set al mese

Prodotti correlati

Video

Cavo automatico Mesh Welding Machine, macchina Multiplo punti dello scaffale del supermercato della saldatura a punti

Ottenga il migliore prezzo

Video

Hwashi Gantry tipo macchina di saldatura a condensatore automatico standard CE / CCC / ISO

Ottenga il migliore prezzo

Video

Hwashi Swinq BaseWire Frame Welding Machine Ferro Wire Row Welding Machine

Ottenga il migliore prezzo

Video

Refrigerator Wire Tube Condenser Production Line Machine, Welding and Bending Machine

Ottenga il migliore prezzo

Contattici

+8613380655800

marketing@hwashi.com

Contatto ora

Descrizione di prodotto

Welding Power Source Three-Phase MF DC Power Supply System for Wire Mesh Welder

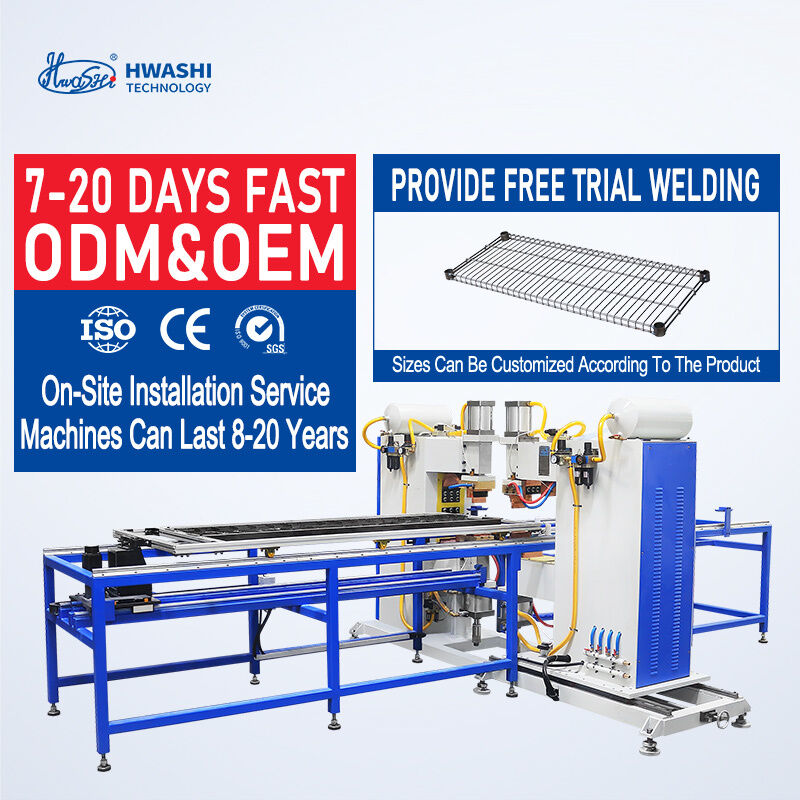

This wire welding machine features a single-head long arm welding structure with automatic X and Y axis workpiece mold movement. By inputting coordinate data of welding position and current, it achieves fully automatic welding. Simply load materials manually and remove finished pieces. Ideal for welding mesh within 1000mm × 1000mm range.

Specifications

Model	WL-TSP-100/150K
Input Power (V/φ)	380/3
Rated Power (KVA)	100/150
Applicable Material	Stainless Steel, Carbon steel, Aluminum, Metal
Electrode Force (KG)	250-400
Welding Thickness (MM)	1-5mm
Warranty	1 year
Mesh Welding Range	1000mm × 1000mm

The Three-Phase MF DC Power Supply System delivers precise, stable DC output through three-phase input, optimized for industrial wire mesh production. Operators can prepare materials for next welding while current work continues, reducing labor costs and maximizing efficiency.

Key Features

Intelligent welding control system with automatic coordinate and current input
Core components: PLC, Engine, Motor for reliable operation
Wire frame bending capability for square shape wire frames
Dual power options: Three-phase MF DC or two-phase AC supply
Automatic wire filling system for continuous operation
Customizable dimensions to match specific product requirements
1200mm effective welding width for large mesh products
Automatic double-layer feeder for improved productivity

Technical Parameters

Product Name	Wire Mesh Welding Machine
Welding Power Source	Three-phase MF DC or two-phase AC power supply
High Speed Wire Processing	5× normal speed for 2mm to 4mm wires
2D Wire Handle Bending	2-6mm wire bending capability
Welding Heads and Fixtures	Custom designed per product drawings
Wire Frame Double T-Butt Machine	Dual-head cross bar welding design

Applications

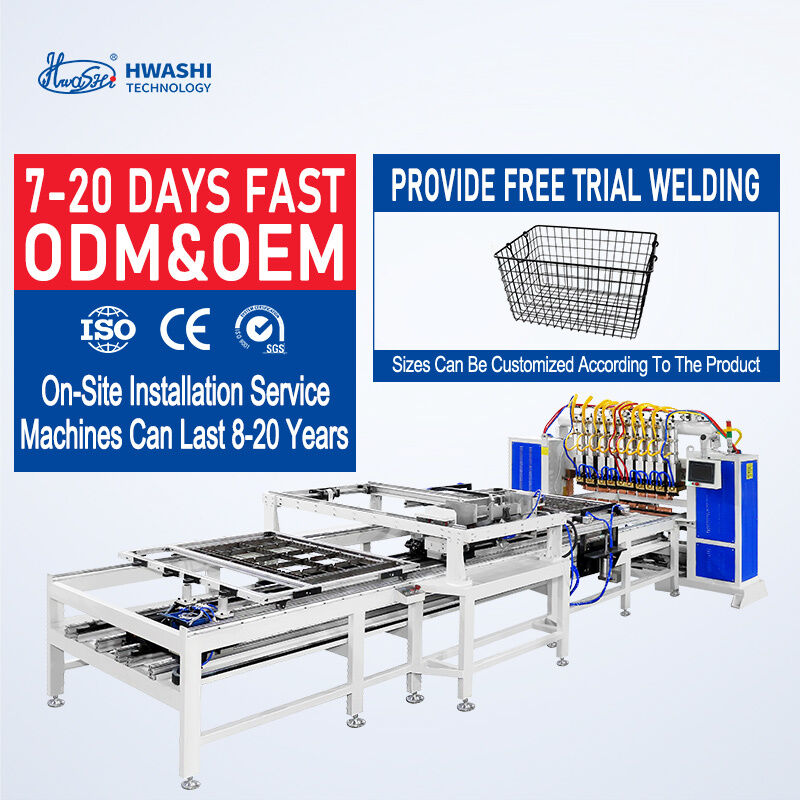

Ideal for manufacturing wire mesh fences, cages, grids, and shelves. Capable of welding various wire diameters and mesh sizes with 3000mm effective length and 1200mm width. Features full-automatic stainless steel mesh welding with multiple simultaneous welding heads for high-volume production.

Delivery: 7-30 working days after payment
Packaging: Sea-worthy wooden case
Capacity: 50 sets/month
Payment: L/C or T/T negotiable
