Name: High-speed 80m/min Bundy Tube Straightening and Cutting Machine with ±0.5mm Precision and Automated Touch Screen Control
Brand: Guangdong Hwashi Technology inc.
SKU: WL-SC-75K
Price: 225,000.00 USD
Availability: InStock

Casa > prodotti > Saldatura a condensatore frigorifero >

High-speed 80m/min Bundy Tube Straightening and Cutting Machine with ±0.5mm Precision and Automated Touch Screen Control

High-speed Bundy tube straightening machine

Automated touch screen tube cutter

Precision Bundy tube cutting machine

Luogo di origine:

Cina

Marca:

HWASHI

Certificazione:

CE/CCC/ISO

Numero di modello:

WL-SC-75K

Contattici

Richieda una citazione

Dettagli del prodotto

Nome del prodotto:

Macchina per raddrizzare e tagliare tubi Bundy adatta per condizionatori d'aria

Tensione in ingresso:

440v, trifase 50Hz

Metropolitana applicabile:

Bundy Tubo

Outpower:

1.12KW

Garanzia:

12 mesi

Condizione:

Nuovo

Vita utile:

8-10 anni

Termini di trasporto & di pagamento

Quantità di ordine minimo

1 insieme

Prezzo

Negoziabile

Imballaggi particolari

pacchetto di legno degno di mare

Tempi di consegna

7-30 giorni lavorativi dopo aver ricevuto il pagamento

Termini di pagamento

T/T, L/C

Capacità di alimentazione

50 set al mese

Prodotti correlati

Welding Machine Refrigerator Condenser Welding Machine Featuring 0.5 to 2 Seconds Per Weld Speed and 200A Current for Refrigeration Parts Assembly

Ottenga il migliore prezzo

Weldingspeed 0.5-2 Seconds Per Weld Condenser Welding Machine for Refrigerators Spot Welding Method Ensures Fast Refrigeration Maintenance

Ottenga il migliore prezzo

Spot Welding Refrigerator Condenser Welding Machine Suitable Material Bundy Tube Dimensions 1200mm X 800mm X 1400mm

Ottenga il migliore prezzo

Weldingspeed 0.5 to 2 Seconds Per Weld Refrigerator Condenser Welding Machine Outpower 1.12kw Ideal for Refrigeration Part Fabrication

Ottenga il migliore prezzo

Contattici

+8613380655800

marketing@hwashi.com

Contatto ora

Descrizione di prodotto

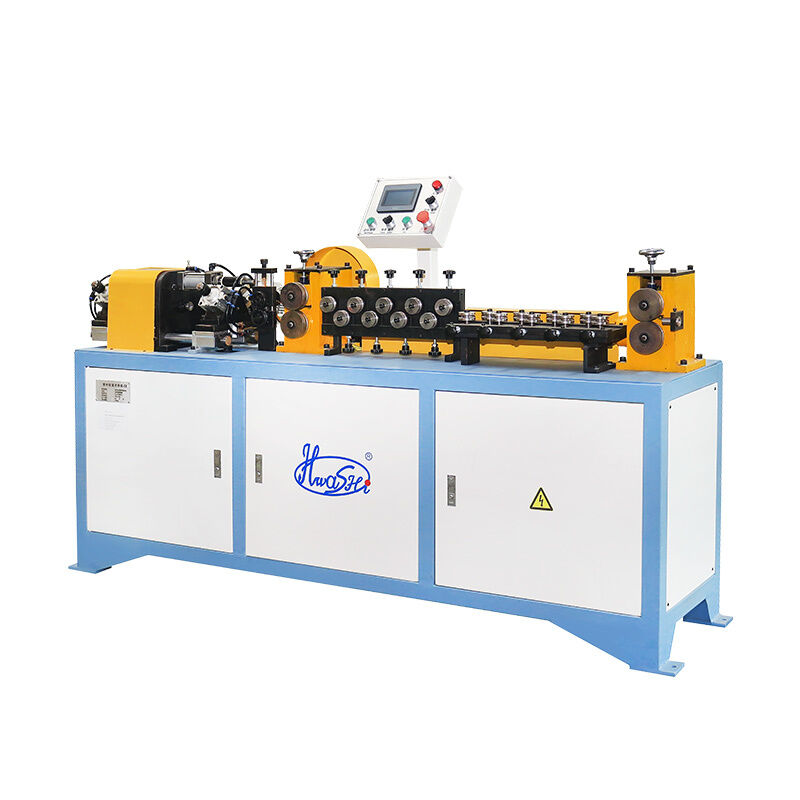

Bundy Tube Straightening And Cutting Machine Suitable For Air Conditioning Condenser

Product Overview

This high-speed wire cutting machine is developed and designed by our company, featuring wire feeding speeds reaching 80m/min - the fastest in China. The machine delivers cutting length accuracy of ±0.5mm with automatic length adjustment via an integrated touch screen control system.

Key features include output preset and shortage alarm settings, efficiency three to four times higher than traditional wire straightening and cutting machines, convenient adjustments, and superior cutting precision. The equipment improves production line efficiency while saving manpower.

Widely used for processing iron wire, stainless steel wire, galvanized wire, aluminum wire, and other metal wires. The equipment features a rational structure, stable and reliable operation, simple operation, and high automation levels, enabling one operator to manage multiple machines simultaneously.

Technical Specifications

Parameter	Specification
Input Voltage	440V, Three-phase 50Hz
Applicable Tube	Bundy tube
Working Air Pressure	0.6-0.8Mpa
Tube Coil Specification	￠4.76~￠6.35mm 4.76 & 8.0mm
Tube Wall Thickness	0.4~1.5mm
Output Power	1.12KW

Applications

The Bundy Tube Straightening and Cutting Machine is specifically designed for straightening and cutting Bondi tubes, widely used in refrigerator and air-conditioning condenser manufacturing industries.

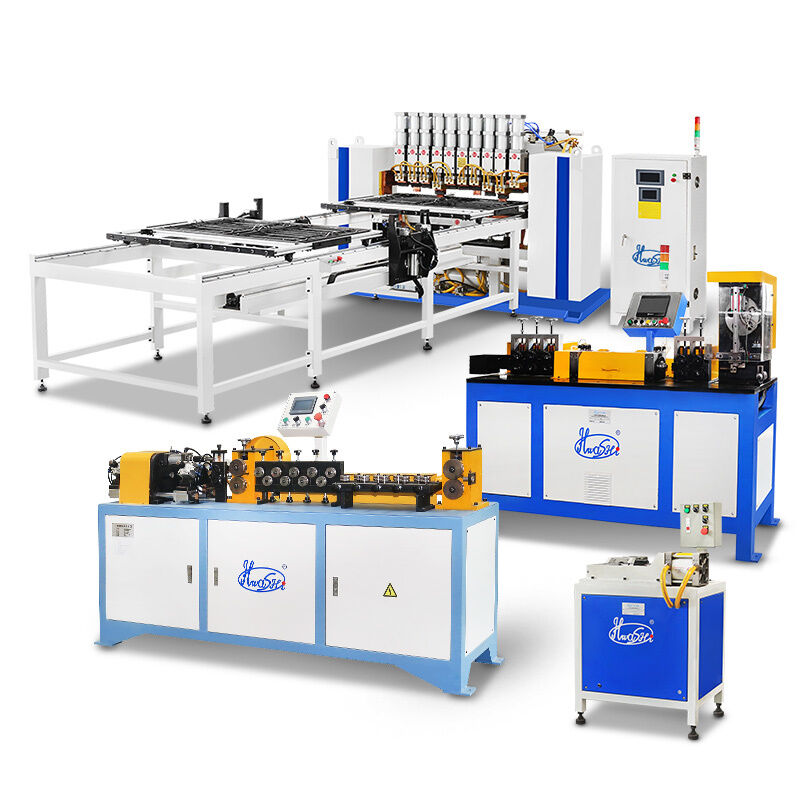

Production Process

Condenser Production Process
